Dental Mini Implant Torsion Handpiece 20/35N Precision Control Manufacturer
Problem with mini implant placement
Mini implant placement need precise torque control. Two common failure: over torque cause bone micro fracture, under torque cause implant loose. Many dentist use standard implant wrench without calibrated torque, result not consistent especially in posterior area where access is small. Mini implant is 1.8-2.5mm diameter, more sensitive to torque than regular implant.
Our 20/35N mini implant torsion handpiece solve this problem. Dual calibrated torque setting, compact head reach posterior area where standard angle cannot fit. Precision gear deliver consistent torque within 5% accuracy, test through 10000 cycle in our ISO 13485 factory.
Product parameter
| Parameter | Specification |
| Torque Setting | 20 Ncm / 35 Ncm dual |
| Torque Accuracy | ±5% |
| Torque Unit | Ncm (Newton centimeter) |
| Reduction Ratio | 20:1 |
| Connection | Standard E-type ISO E |
| Compatible Motor | KaVo, NSK, W&H, Anthogyr most brand |
| Chuck Type | Push button, latch compatible |
| Bur Shank | 2.345mm standard |
| Head Diameter | 10.5mm compact |
| Overall Length | 72mm |
| Weight | 68 gram |
| Material | Medical stainless steel 304/316L |
| Bearing | Ceramic ball bearing |
| Water Spray | External 3 point |
| Noise | Under 65 dB |
| Sterilization | Autoclave 135°C 2.1 bar |
| Sterilize Cycle | Pre-vacuum 4-18 min |
| Speed Range | 30-1000 RPM |
| Implant Diameter | 1.8mm - 3.0mm mini implant |
| Warranty | 12 month |
| Certification | CE 0123, ISO 13485:2016 |
Key advantage

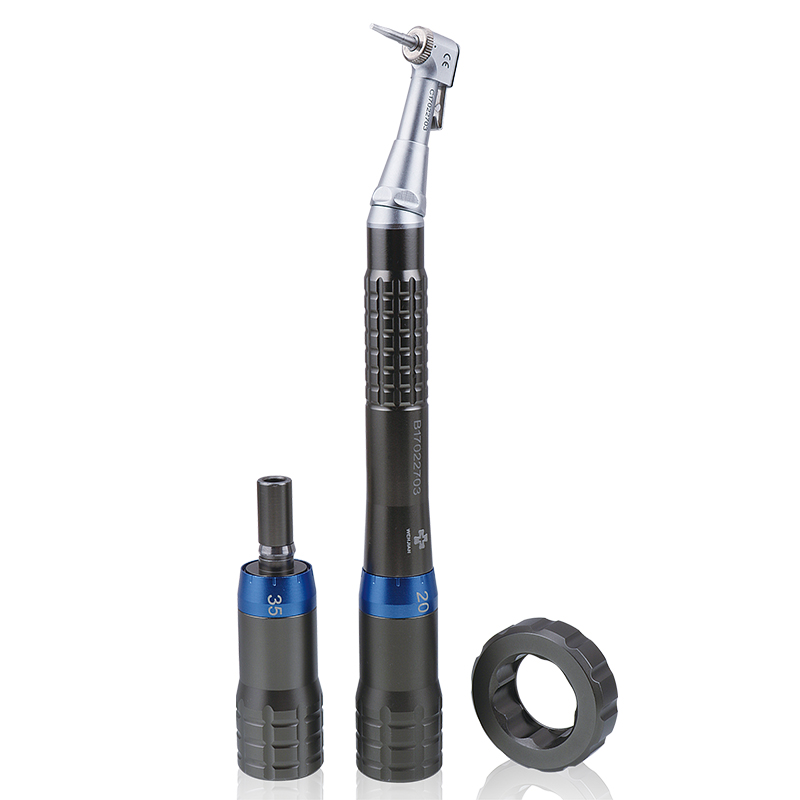

1. Dual calibrated torque: 20N for soft bone small implant, 35N for dense bone larger mini implant. Torque limit slip at set value, protect bone and implant.

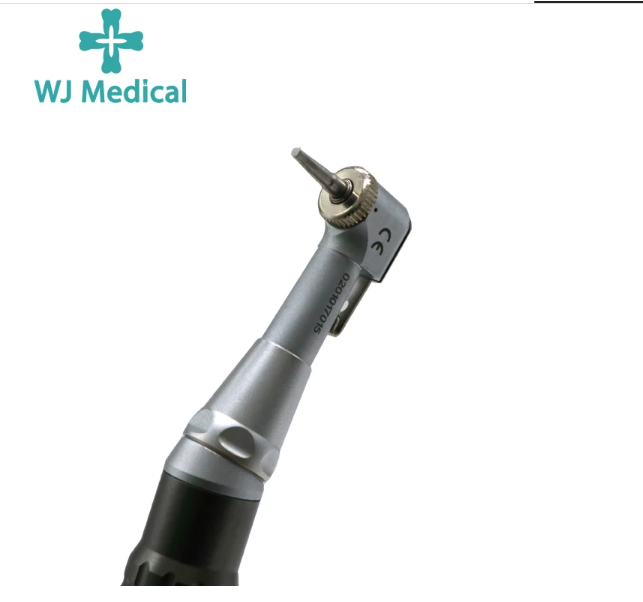

2. Compact head 10.5mm: reach second molar where standard 20:1 angle 12-14mm head cannot. Important for lower posterior overdenture case.
3. Precision gear: CNC machined stainless steel gear heat treated, torque accuracy ±5%. Each unit test on torque calibration bench before pack.
4. Ceramic bearing: resist autoclave moisture, 2x longer life than steel. Rated 500+ autoclave cycle.
5. External water 3 point: cool bone during drill, prevent thermal necrosis (bone temp under 47°C). No internal channel clog.
6. OEM private label: laser logo on handle, custom color ring, brand box. MOQ 50 piece for OEM.
About WJMEDICAL factory
WJMEDICAL (Foshan Wenjian Medical Device Co., Ltd.) make dental handpiece and implant instrument since 2006. Factory 10000+ square meter, 6 production line, annual output 1.5 million handpiece. 120+ staff include 15 R&D engineer and 8 QC specialist.
Our factory certified ISO 13485:2016 and CE 0123. Export over 100 country through distributor and OEM partner. Quality system include incoming material check, in-process monitor, 100% final test, batch trace record keep 5 year.
Production capability: CNC machining 20+ machine, automatic gear cutting and heat treat, clean room assembly Class 100000, laser mark and custom pack, in-house torque calibration lab.
After sales: 12 month warranty, free replace for manufacture defect, technical support email and WhatsApp, spare part 5 year available, repair and recalibration service.
Client case
Case 1 - European distributor overdenture clinic network: German distributor supply our 20/35N torsion handpiece to 15 clinic specialize mini implant overdenture. Over 2 year, 40% reduction placement failure from torque inconsistency. Compact head enable posterior placement in 85% case where old angle fail.
Case 2 - North America implant training center: US dental CE center use our handpiece in mini implant hands-on course. Dual torque allow teach soft bone 20N and dense bone 35N with one instrument. Train over 500 dentist per year.
Case 3 - Southeast Asia government dental program: Supply through regional distributor, use in government geriatric dental program 200+ clinic. Program place mini implant for mandibular overdenture elderly patient. External water prefer for easy maintenance field condition.
Quality control and production process
Raw material: all stainless steel bar come with material certificate, test hardness HRC 38-42 and chemical composition before production.
Machining: gear and component CNC machined tolerance ±0.005mm. Each batch dimension inspect by coordinate measuring machine.
Heat treat: gear vacuum quench and temper, surface hardness HRC 58-62, core toughness HRC 35-40.
Assembly: handpiece assemble in Class 100000 clean room. Each unit lubricate medical grade grease, run-in 5 minute.
Test 100% unit: torque calibration 20N and 35N (±5%), speed and vibration measure, noise test under 65dB, water spray pattern check, chuck grip force test, autoclave simulation 50 cycle.
Calibration certificate: each handpiece ship with individual certificate show measured torque both setting, test date, technician sign. Calibration equipment traceable to national standard.
Trade show: exhibit annually IDS Cologne, AEEDC Dubai, CDS Chicago. Visit booth for live torque demo and production quality sample.
FAQ
Q: Minimum order? A: Sample 1 piece. Wholesale price start 5 piece. OEM private label 50 piece minimum.
Q: Delivery time? A: Stock model 3-5 business day. OEM custom logo pack 15-25 business day. Large order 500+ 25-35 day.
Q: Shipping method? A: DHL FedEx UPS express 3-7 day. Air freight 5-10 day. Sea freight 25-35 day bulk. FOB Foshan or CIF as request.
Q: Payment? A: T/T bank transfer 30% deposit 70% before ship. Western Union. PayPal sample. Alibaba Trade Assurance verified buyer.
Q: Sample available? A: Yes, sample price refundable on bulk order over 50 piece. Sample ship DHL/FedEx 3-5 day.
Q: Torque adjustable? A: 20N and 35N factory calibrated fixed. Recalibration service available through tech department or authorized center.
Q: Compatible implant system? A: Most mini implant with 2.345mm latch driver, include Straumann Mini, Nobel Mini, 3M MDI similar. Contact for specific driver.
Q: Custom packaging? A: Yes custom print box, foam insert, manual your language, brand calibration certificate. Minimum 50 piece.
Q: Warranty return? A: 12 month manufacture defect. Defective unit replace free include shipping. No return used instrument infection control.
Q: Regulatory document? A: Declaration of Conformity, CE certificate, ISO 13485 certificate, technical file summary, risk assessment for local registration.
Contact sales team for wholesale price, OEM quote, technical spec. Reply all inquiry within 12 business hour.
